The Sunny wellbore geometry (SunnyWG for short) is a sub-module of SunnyDrilling and can operate independently.

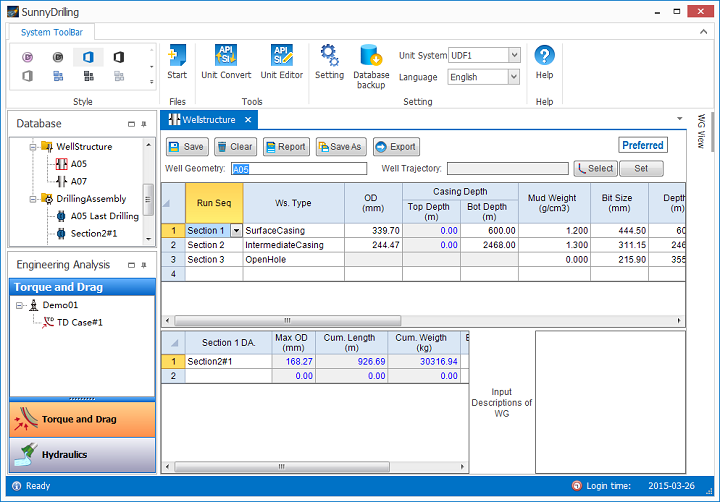

SunnyWG helps users enter the wellbore geometry easily in forms model and displays the graph synchronically, and outputs a wellbore geometry report which conforms to the SY/T 5333-2012 Format for Drilling Engineering Design.
SunnyWG has a built-in casing libraryof API standard and also allows users to self-define off-spec casing.

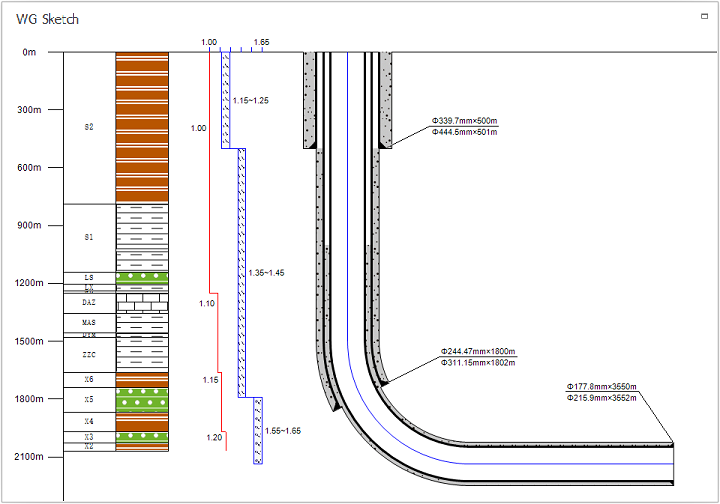

The wellbore geometry graph plotted by SunnyWG includes rich information like formation name, formation legend, pressure density curves, etc.
