The Sunny torque and drag analysis software (SunnyT&D for short) conducts an overall analysis of stress on drill string with finite element method by building a model for drill string in 3D wellbore. In addition to the analysis of conventional directional wells and horizontal wells, it can analyze short-radius wells and casing /tubing running. SunnyT&D uses stiff-model for finite element solution, so its results are more reliable which has been demonstrated in drilling sites.

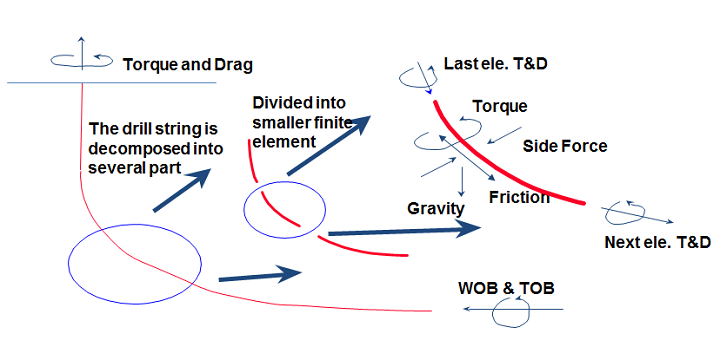

Mechanics analysis principle

Functions and features：

•Analyze well created by SunnyPathing, is also can create single well;
•By solving 3D rigid model of finite element method, the results are credible;
•Wide application range, it can analyze the short radius well and casing running;
•Analysis of drill string side force, torque and drag, etc.;
•The drill string strength check: three axial stress (VonMises), tensile, torsion; The critical buckling analysis;
•Sensitivity analysis can help users quickly conduct scheme comparison and demonstration;
•Analysis model for the actual drilling situation, easy to use.

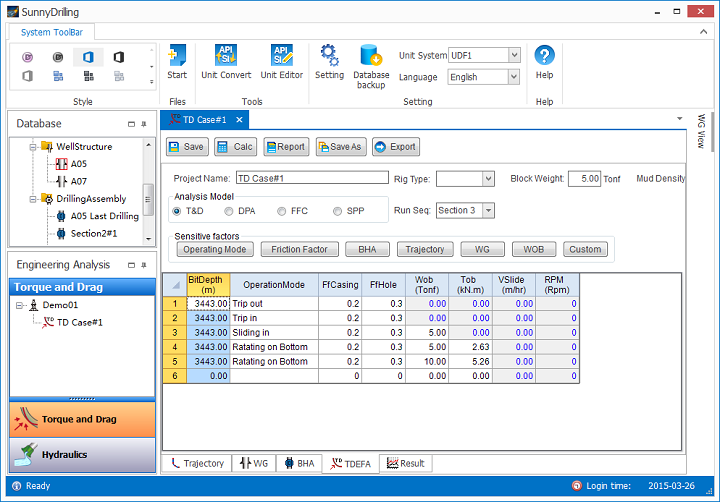

Visualized operation interface

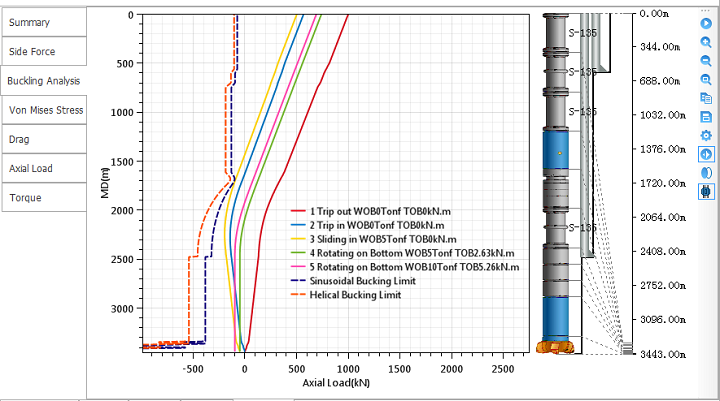

Display of analysis results
